Looking for 223 load data for 80gr bullets standard & Sub

[Local Loader]

Hello my fellow reloaders,

I've tried doing some searching and haven't had much luck finding any load data for 223/5.56 80gr bullets for barrels under 20" (10" to 18") with twists 1:7 to 1:9 for both standard and sub loads.
If anyone has any info or knows where to find it, I would appreciate it greatly, thanks.

Read More



[arakboss]

Hello my fellow reloaders,

I've tried doing some searching and haven't had much luck finding any load data for 223/5.56 80gr bullets for barrels under 20" (10" to 18") with twists 1:7 to 1:9 for both standard and sub loads.
If anyone has any info or knows where to find it, I would appreciate it greatly, thanks.

77gr data should work?

Twist Rate Effect on Load Data

In nearly every reloading manual I see the test barrel for a 223 Rem is 1:12 twist 24". In my Stevens and by buddies Axis the twist rate is 1:9 twist 22". I would like to know how this will effect the Velocity and the safe max load of the cartridge. I don't want to spin any bullets until the fly...

www.longrangehunting.com



[arakboss]



[arakboss]



[arakboss]

I would use extra caution as you approach max loads but I think you will be fine beginning with the starting loads developed in slower twist test barrels.



[Local Loader]

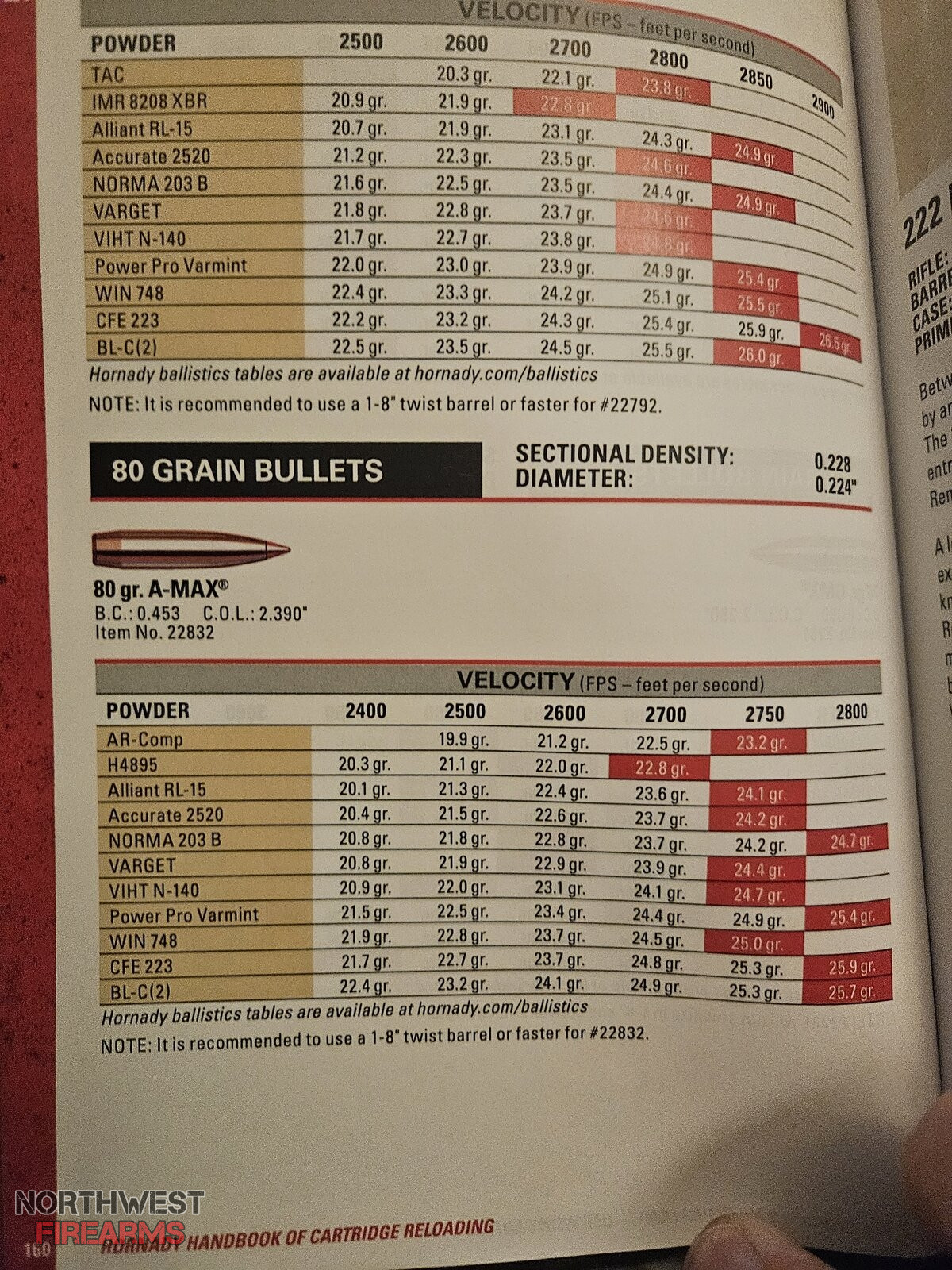

View attachment 1903500

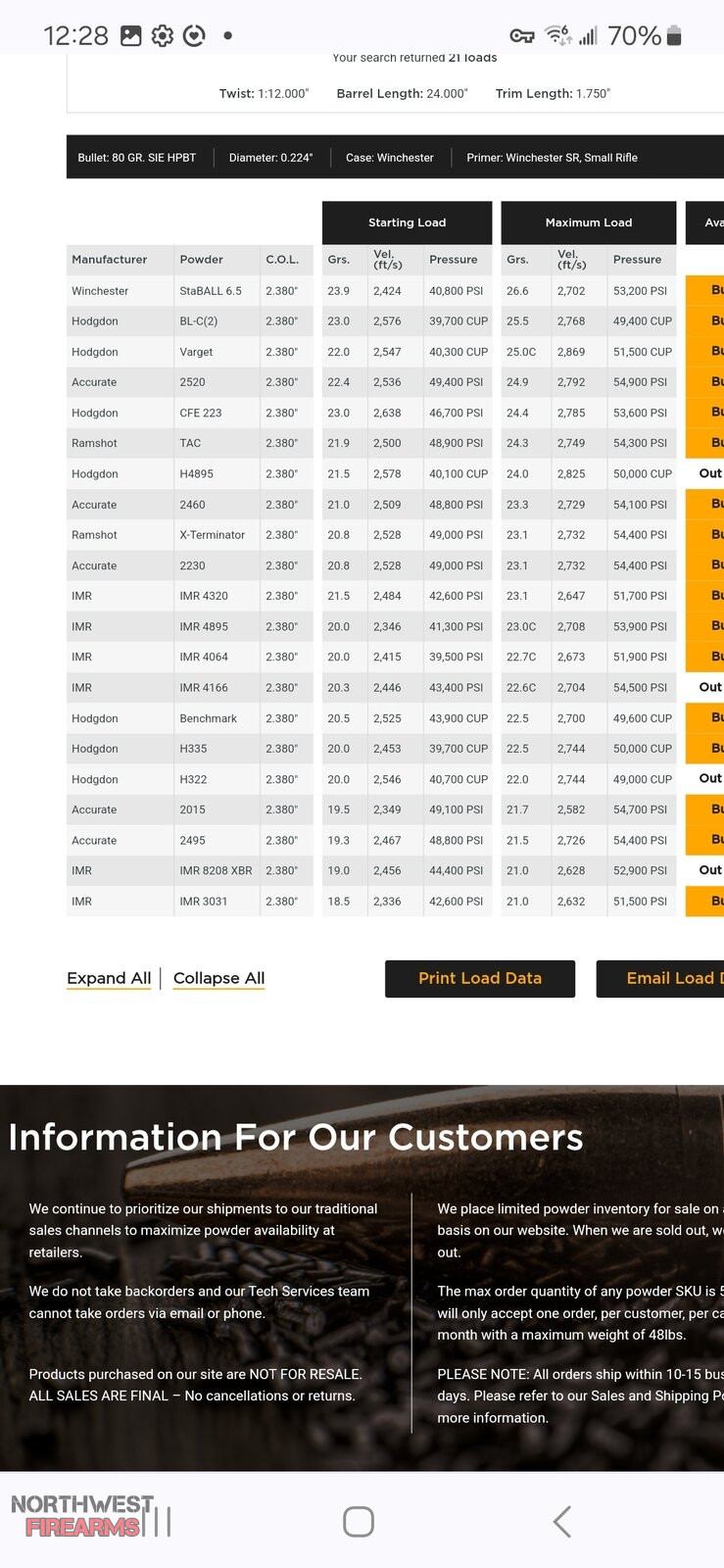

View attachment 1903486

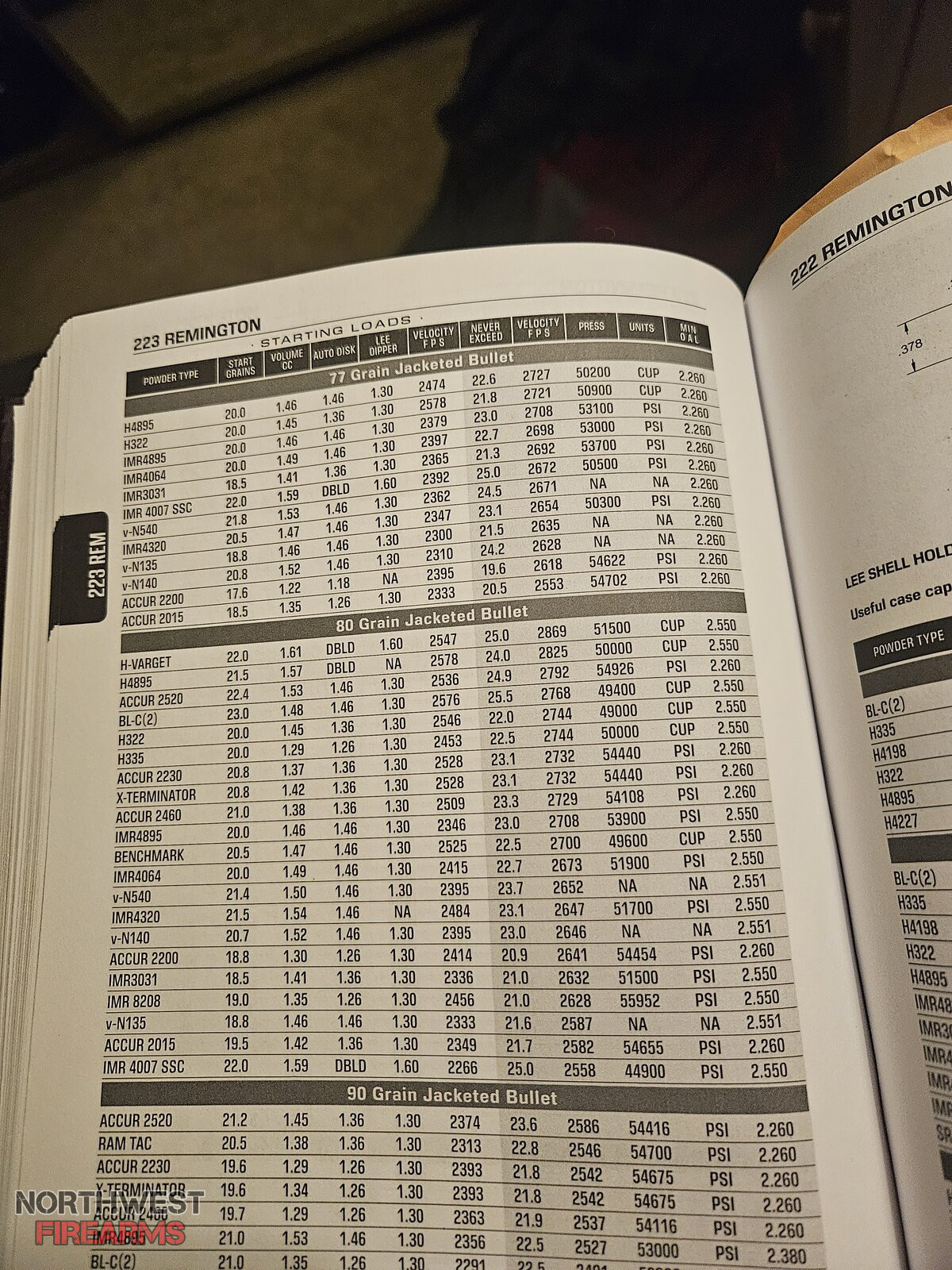

View attachment 1903494

I found all of that data but it's all for 20-24" barrels with a 1:12 or lower twist.
Looking for under 20" barrel with 1:7 to 1:9 twist rate.



[arakboss]

I found all of that data but it's all for 20-24" barrels with a 1:12 or lower twist.
Looking for under 20" barrel with 1:7 to 1:9 twist rate.

You may have to improvise. I can't imagine how many pages the load books would be if they had to develope different data for each barrel length and twist rate available in all calibers. My understanding is the load data is just a guideline and you have to tweak it to fit your individual firearm and component selection.



[arakboss]

This data is for 20in AR15 with 1/7 twist.



[Local Loader]

This data is for 20in AR15 with 1/7 twist.

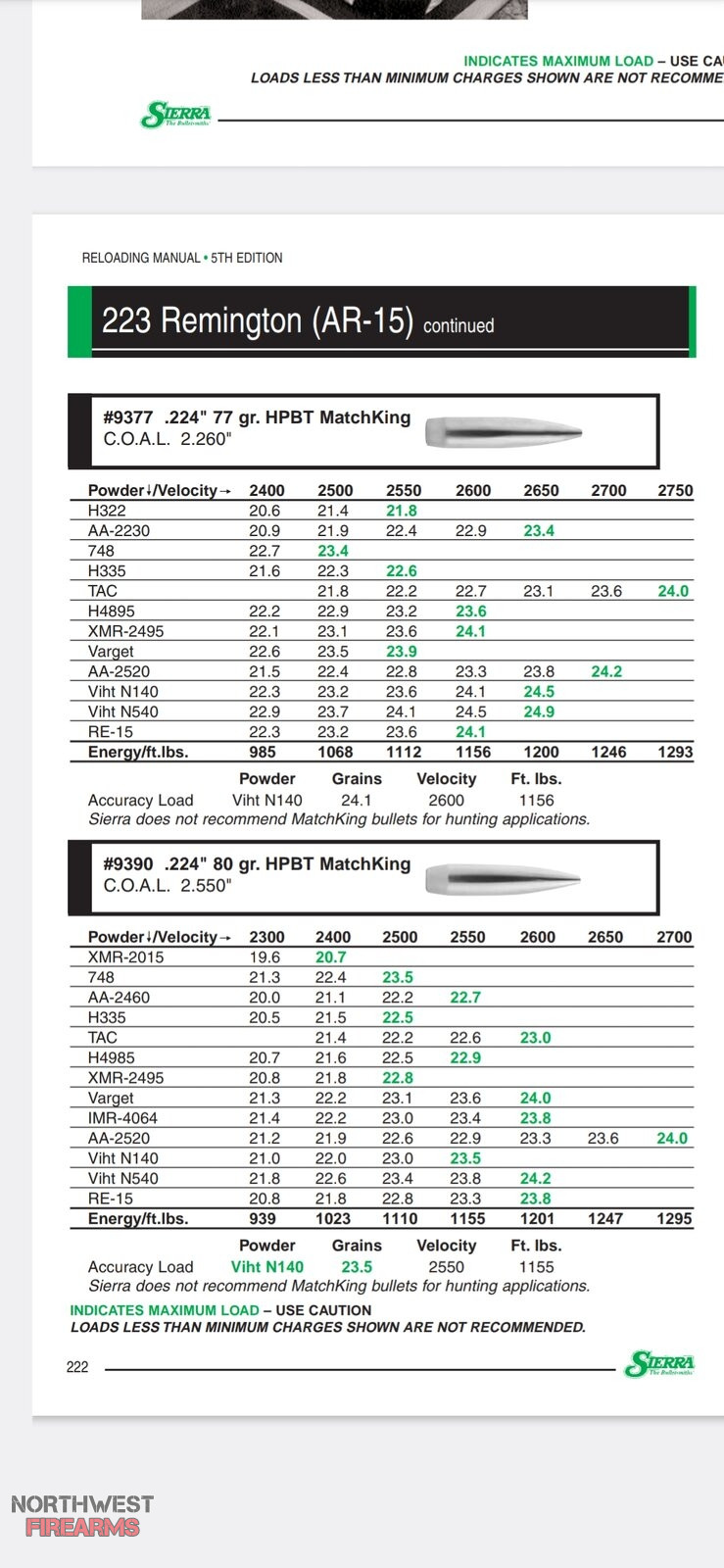

View attachment 1903517

Yeah I found similar info to that, not sure why they chose 20" and 24" for an AR-15 given most are 16-18".



[T22]

https://www.shootersreference.com/reloadingdata/223-remington/



[Local Loader]

https://www.shootersreference.com/reloadingdata/223-remington/

Nice data collection, only problem is it only listed data for 20-24" barrels.



[T22]

Top left has a selection for pistol data (typically 15" for rifles). Just looked, 70 gr is the heaviest pistol load they have



[Pepe-lepew]

Yeah I found similar info to that, not sure why they chose 20" and 24" for an AR-15 given most are 16-18".

Because almost all people loading 80's are shooting mid range (600 yards) or longer and use that extra barrel length for velocity. They are also loading them longer than mag length. Look at the OAL of the load data posted, most of it is much longer than mag length of an AR.



[Local Loader]

Because almost all people loading 80's are shooting mid range (600 yards) or longer and use that extra barrel length for velocity. They are also loading them longer than mag length. Look at the OAL of the load data posted, most of it is much longer than mag length of an AR.

Yeah, my problem is I'm wanting to load for low velocity as close to sub as I can get.



[DizzyJ]

I was going to recommend service rifle loads but as mentioned it'll be for 20" and single feed more than likely.

Curious to ask what you're going for and would 300BLK be a better option for going sub?



[oremike]

Yeah, my problem is I'm wanting to load for low velocity as close to sub as I can get.

I just looked on the Hodgon site sub sonic data and they have loads for the 77gr bullet yes in a 24" barrel so maybe not the end all be all for you but it might be a starting point for load development. If a load is sub sonic in a 24" barrel it should be even slower in a 20" or less.



[Local Loader]

I was going to recommend service rifle loads but as mentioned it'll be for 20" and single feed more than likely.

Curious to ask what you're going for and would 300BLK be a better option for going sub?

I'm trying to create some sub rounds or as close to sub as I can get for home defense rounds. Closes load data I've been able to find is the 223 SR and 22 ARC(gas gun) both use the 80gr bullets and have similar charge weights for similar velocities.



[DizzyJ]

I'm trying to create some sub rounds or as close to sub as I can get for home defense rounds. Closes load data I've been able to find is the 223 SR and 22 ARC(gas gun) both use the 80gr bullets and have similar charge weights for similar velocities.

I didn't think 80gr pills would fit into a magazine?



[Local Loader]

I didn't think 80gr pills would fit into a magazine?

They can, just means less room for powder



[DizzyJ]

They can, just means less room for powder

I thought it had more to do with the ogive of the bullet being too far back into the case and neck tension/setback issues especially in an auto loading platform.
